OKM 3D Ground Navigator

3D ground gold detector for treasure hunters
3D Ground Navigator is an efficient 3D scanner and metal detector manufactured by OKM Germany. The detector is developed according to highly specific customer requirements. It is a high performance geophysical detector for locating buried artifacts, lost treasures, subsurface anomalies, underground facilities as well as other hidden structures. Provides non-destructive inspection methods to provide graphic images of underground targets prior to excavation.
The 3D Ground Navigator Controller is powered by an internal battery that lasts about 24 hours. If you need to extend uptime, you can also use the optional power pack which lasts about 48 hours.
Ground Navigator Operating Modes
Magnetometer to find magnetic materials.
Rapid pre-scan allows debris to be removed from the surface before a precise 3D ground survey or Pinpointer is performed.
3D Ground Scan A true 3D scan of underground treasures that can be viewed in Visualizer 3D to obtain detailed information on hidden targets such as size, depth and position.
Pinpointer to select the material type (magnetic metals, precious metals or voids).
Request your personal offer
Superior sensor with LED orbit for instant feedback
The ground scanner comes with a very unique super sensor capable of detecting even small metallic objects underground. In addition, this super sensor has an LED orbit to visualize hidden objects in real time.
Easy-to-use ground scanner and treasure detector
3D Ground Navigator is very easy to handle and efficiently detect underground treasures.
Superior Sensor with LED Orbit
The Ground Navigator is used with a high-performance Super Sensor with LED Orbit.
3D Ground Navigator is manufactured by OKM Germany as per the requirements of our customers. We are proud to be the distributor of this unique metal detector and will support our customers with all the information needed to operate this detector.
Visualization with OKM 3D software
Along with the 3D Ground Navigator comes the original Visualizer 3D software from OKM which allows 3D representation of underground targets. For additional in-depth analysis of the ground scans performed, a user of the 3D Ground Navigator can wirelessly transmit stored scan images to a computer.
3D visualization
OKM Ground Navigator 3D Graphic: The 3D graphic representation indicates the presence of buried objects that have been discovered underground.
Multilingual user interface
OKM Ground Navigator GUI: The Graphical User Interface (GUI) for Visualizer 3D comes in several different languages ​​to support the user in the most efficient way.
Averages facilitate the evaluation of the survey
OKM Ground Navigator interpolation: Some filtering options such as interpolation can improve the quality of the ground scan to better find hidden objects.
Determining the depth of detected objects
OKM Ground Navigator Depth Measurement: By identifying the anomalies in the graphic display, the operator can easily measure the current depth.
After the data is transferred to the PC, the scan files can be opened with OKM Visualizer 3D software to enhance, quantify and improve the recorded scan data. The visualization software has already demonstrated its capabilities: many finds of buried treasures and artifacts as well as other hidden objects have been determined by evaluating measurements with Visualizer 3D.
The following functions are included in Visualizer 3D:
Mark survey images with details such as description, area dimensions, and soil conditions
Measuring the location, size and depth of local treasures and artifacts and the like
Selection of preformed soil types for depth measurement
Variable display and display options (wire frame, resolution, colors, ...)
Automatic and manual correction of false signals (due to the tilt of the probe during recording)
color filtering

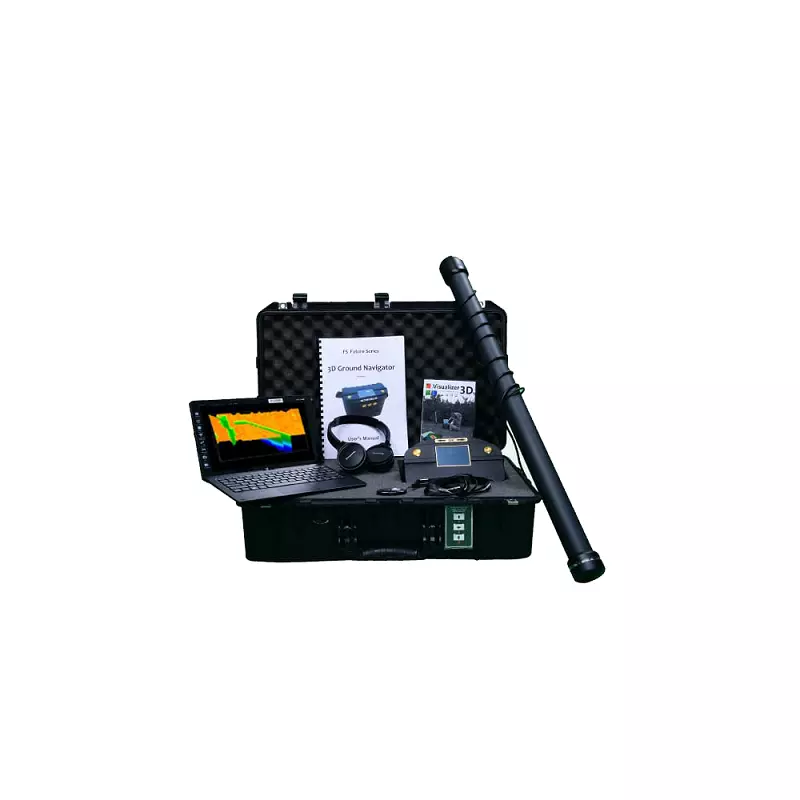

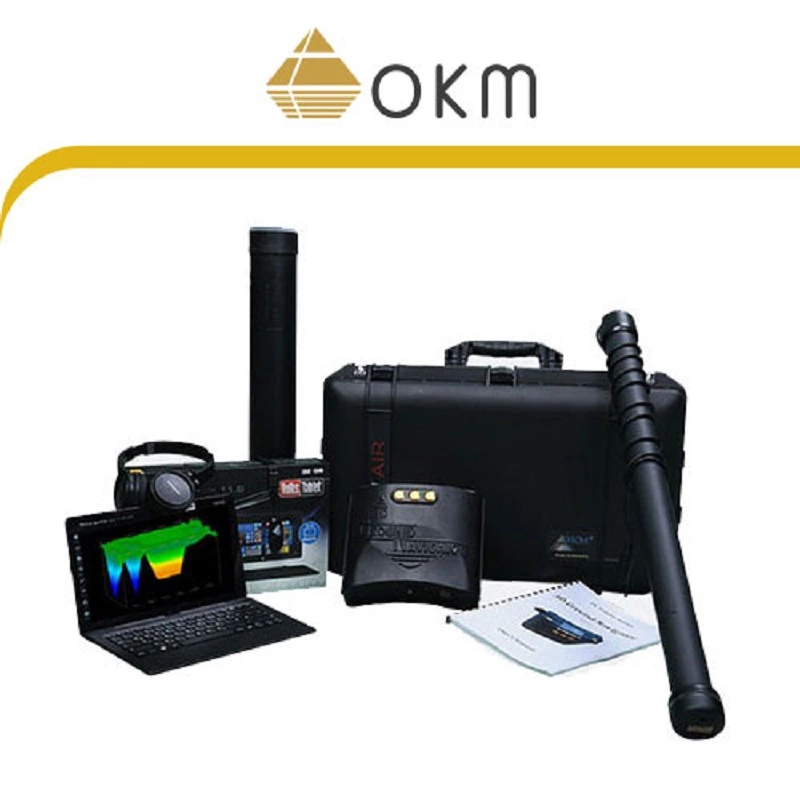

1x	Control unit with carrying strap
1x	Super Sensor with LED Orbit
1x	Bluetooth headphones
1x	Charger for Control Unit
1x	Bluetooth dongle
1x	Software "Visualizer 3D"
1x	Waterproof and shock-resistant Peli case
1x	Carrying tube for Super Sensor 1
1x	User's Manual

Control Unit

• Dimensions (H x W x D): 180 x 230 x 120 mm
• Weight: about 1.2 kg
• Protection Class: IP40
• Operating time (internal battery): approx. 24 hours
• Charging time (internal battery): approx. 3 hours
• Operating time (optional Power Pack): approx. 48 hours
• Input voltage (charger socket, max.): 19 VDC / 0.6 A (max. 24 VDC / 0.5 A)
• Input voltage (optional Power Pack): 12.5 VDC / 0.9 A (max. 24 VDC / 0.5 A)
• Processor / Main CPU: Cortex M3, 32 MHz
• Processor / Slave CPU: Cortex M0, 24 MHz
• Display: 3.5” Resistive touch, 480 x 320 Pixel
• Display CPU: Cortex M3, 32 MHz, 128 KB RAM
• Data memory: 4 GB
• Sample rate: 1024 values / second
• Measurement resolution: 16 bit
• Operating temperature: –10°C – 60°C
• Storage temperature: –20°C – 70°C
• Audio: Internal speaker / Bluetooth
• Waterproof: No
• Air humidity: 5% – 75%

Super Sensor

• Length: 850 mm
• Weight: 0.85 kg
• Diameter, Shaft / LED Orbit: 50 mm / 65 mm
• Diameter tube / LED Orbit: 50 mm / 65 mm
• Sensor Technology: SCMI-15-D

Data Transmission

• Technology: Bluetooth
• Frequency: 2.4 – 2.4835 GHz
• Maximum Transfer Rate: 1 Mbps
• Receiving Sensitivity: –85 dBm
• Maximum Range: approx. 10 m
•

Computer minimum requirements

• CD-ROM drive: minimum 4x
• Interface (Data transmission): USB
• Free disk space: minimum 50 MB
• Working memory (RAM): minimum 256 MB
• Graphic card: minimum 128 MB, OpenGL-compatible
• Processor: minimum 1.2 GHz
• Operating system: Windows 7, Windows 8, Windows 10

The technical data are average values. Minor deviations are possible during operation.
