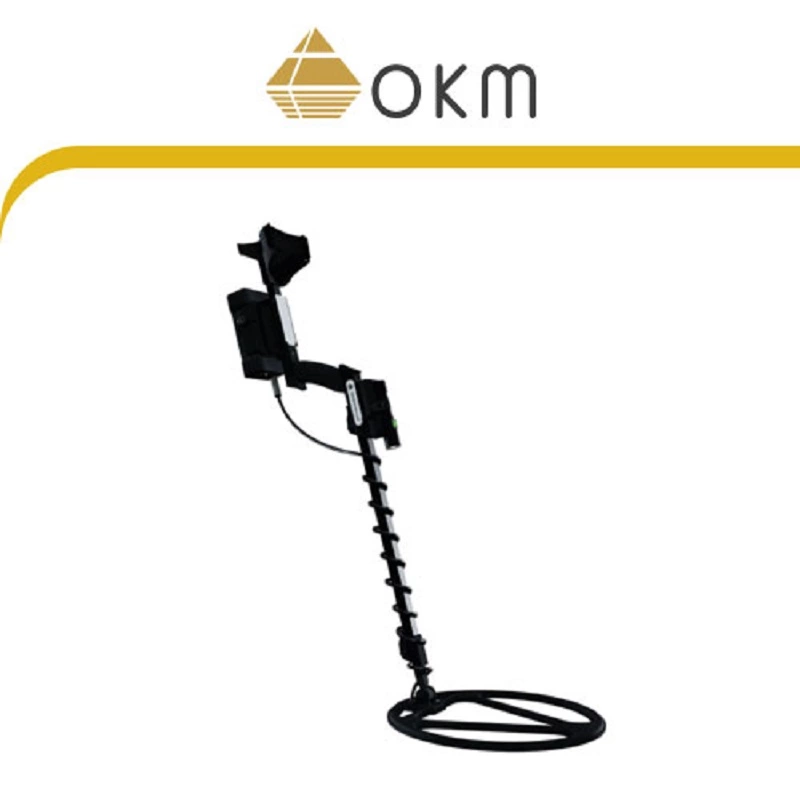

OKM Pulse Nova

Even the ancient Greeks knew there was a lot to discover in our world. In addition to the elements of the Earth, the flicker of stars in the night sky fascinates so much that hundreds of years ago devices were developed to explore the mysteries of the universe. As a manufacturer of metal detectors, we keep our feet on the ground and dedicate our new "star" Pulse Nova to detect shiny things underground:
OKM's Pulse Nova PI metal detector provides more efficient ground scanning, detecting lost jewelry such as rings, pendants and earrings, natural gold such as gold nuggets and militias such as antique weapons and ammunition at depths of up to 3 metres.
Metal detection at depths of up to 3 meters
PI . metal detector
Pulse Nova can reach enormous search depths thanks to the applied pulse induction method. Pulsed induction (PI) provides critical advantages over other measurement methods to enable these detection depths:
The search coil of the PI metal detector can be enlarged as desired. The larger the coil of the metal detector, the greater the depth of the search.
The principle of operation of the detector allows for a particularly high transmission power, due to which it is possible to detect objects at greater depths.
The deepest possible detection of metal objects in the Earth always depends on factors such as the size and position of the objects and the nature of the Earth. These factors apply in general, that is, to all metal detectors:
The larger the object, the deeper the metal detector can detect it.
The longer the object remains underground, the better it will be detected. (halo effect)
The larger the coil of the metal detector, the deeper objects can be detected.
The conductivity, shape, and position of the object are critical factors for detection accuracy.
The composition of the soil and soil layers affect the depth of measurement.
Compared with passive measurement ground-based scanners from OKM, the Pulse Induction Metal Detector - PI Pulse Nova has another advantage: it achieves unambiguous measurement values ​​even in highly mineralized soils and can therefore detect jewelry directly. Natural gold and precious metals.
Customers who live in OKM Pulse Nova are also interested in:
When testing coils under optimal conditions (test medium: air, sensitivity: max), the following depth performance can be achieved using the PI OKM Pulse Nova metal detector:
Delta18 and Omega18 Coils Delta38 and Omega38 Coils Xi104 Detector Frame
Gold nugget ⌀ 5 mm 18 cm 17 cm -
Gold Coin ⌀ 20 mm 23 cm 25 cm -
Gold ring ⌀ 22 mm 17 cm 34 cm -
Silver Coin ⌀ 24 mm 22 cm 35 cm -
Silver Coin ⌀ 40 mm 31 cm 45 cm -
1 euro piece 28 cm 43 cm -
Beverage can 0.5 liter 65 cm 110 cm 155 cm
Gasoline canister 20 liters 115 cm 180 cm 255 cm
Steel drum DIN EN 210115 cm 180 cm 310 cm
PI . Metal Detector Jobs
Just turn on the metal detector, start walking and swinging! But this is where the real work of the pulse induction detector begins. After connecting the required coil, Pulse Nova automatically recognizes it and starts the appropriate operations for the successful search for treasure and gold.
How does PI detector detect metal objects
The Pulse Nova detector works on the principle of a time-controlled oscillator, which generates a magnetic field in a coil using alternating current. This is sent to the earth and generates an eddy current and thus a reaction in the earth's metal body. The resulting electrical conduction in the metallic body is detected by Pulse Nova as a "perturbation" - an anomaly - and indicated by audio signals.
Thus, jewelry made of precious metals such as gold and silver, as well as ferromagnetic objects as well as natural metals and gold nuggets can be directly detected.
PI metal detector with headphones
Specific search with Pulse Nova
Thanks to its function and different coils, treasure hunters can focus well on target objects: by using the large search coil as well as searching the frame, small objects such as bottle caps, tabs and small aluminum pieces can be ignored. But beware: individual parts can also be skipped when using large search coils! Depending on the field of application and the intended thing, care should be taken to choose the appropriate coil:
Large search coil, large magnetic field: there are mainly large metal objects here.
Small search coil, small magnetic field: Smaller objects can also be detected.
Detecting treasures and minerals with Pulse Nova
Metal detector intuitive operation
Nova pulse control unit
Clearly organized control panel
Pulse Nova can locate buried metal objects in different types of soil without having to dig the area first. With the easy to use PI metal detector and interchangeable search coils, results can be obtained quickly and easily.
The controller has two rotary knobs for adjusting sensitivity and volume. For a particularly intuitive and language-independent operation, the screen has been completely omitted. audio signals i

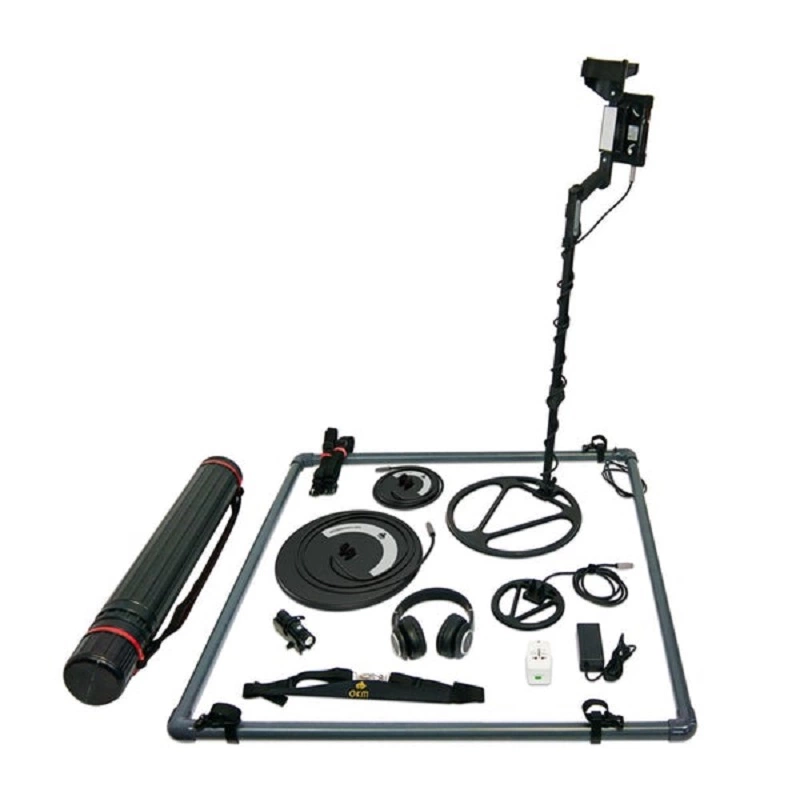

1x	Control Unit with Carrying Strap
1x	Telescopic Rod
1x	Wireless Bluetooth Headphones
1x	LED Flashlight
1x	Charger
1x	Travel Adapter
1x	Search Coil 38 cm
1x	Search Coil 18 cm
1x	OPTIONAL Frame Coil Xi104 with Shipping Tube
1x	Quick Start Guide

Control Unit

• Dimensions (H x W x D): 180 x 115 x 70 mm
• Weight: 0.64 kg
• Input Voltage (max): 4.8 - 20 V DC, 3.16 A, 20 W
• Safety Class: IP40
• Operating Time (fully charged, 25° C): approx. 8 hours
• Charging Time @ 19 V: approx. 3 hours
• Feedback: acoustic
• Operating Temperature: 0°C – 40°C
• Storage Temperature: –20°C – 70°C
• Waterproof: No

Telescopic Rod

• Dimensions (L x W x H): 630 – 1023 x 115 x 200 mm
• Weight: 0.90 kg

Search Coil 38 cm

• Diameter: Ø 375 mm
• Height: 45 mm
• Cable Length: approx. 1.50 m
• Weight: approx. 0.80 kg
• Technology: Bifilar Mono Coil, High Voltage Pulse Induction
• Waterproof: Yes

Search Coil 18 cm

• Diameter: Ø 175 mm
• Height: 45 mm
• Cable Length: approx. 1.50 m
• Weight: approx. 0.4 kg
• Technology: Bifilar Mono Coil, High Voltage Pulse Induction
• Waterproof: Yes

Frame Coil Xi104 (not included in standard delivery scope)

• Dimensions, disassembled (D x L): Ø 130 x 1120 mm
• Weight (with shipping tube): approx. 3.26 kg
• Dimensions, assembled (L x W x H): 1040 x 1040 x 60 mm
• Weight (without shipping tube): approx. 2.35 kg
• Technology: Mono Coil, High Voltage Pulse Induction
• Waterproof: No

The technical data are average values. Minor deviations are possible during operation.
