- Geoelectric water and cavity detector: Determines the ground resistance up to a depth of 100m and visualizes the measured values in 2D
- Depth: Customers found water up to 100 meters - check our references
- Use cases: water detection, cavity detection, geotechnical engineering
- Operating modes: Geoelectrical scan
- Detectable objects: water deposits, water-bearing gravel, cavities
Detection of water and gaps up to a depth of 100 meters
Like its older brother GeoSeeker, the GeoSeeker Mini uses a Schlumberger-based geo-electric measurement procedure. The water detector, which can also be used to detect underground cavities, determines the resistance of the ground. Based on the apparent ground resistance, the detector is able to detect groundwater resources such as fresh water, drinking water, aquifer gravel and groundwater level.
Detecting water in Africa
Detecting water in Africa
GeoSeeker from OKM has been successfully used to detect water in Africa to a depth of 250 metres. The Malian team is using the water detector for humanitarian purposes.
Due to the fact that groundwater has a very good conductivity, you can conclude that very poor conductivity is an indicator of hidden cavities such as caves, tunnels, chambers and underground rooms. Thus, the GeoSeeker Mini Geophysical Detector can be used as a water detector and gap detector.
OKM GeoSeeker Mini
Customers who viewed the GeoSeeker Mini were also interested:
Using GeoSeeker Mini Water and Cavity Finder
The GeoSeeker Mini water detector is controlled by a touch screen. You can specify the depth of measurement as well as the number of exploration points and simply follow the graphical instructions. With the use of easy-to-understand images and icons, GeoSeeker Mini is multilingual with a visual language.
OKM GeoSeeker Mini
OKM GeoSeeker Mini
During the measurement, the electrodes must be moved several times to measure the ground resistance at certain exploration points. All instructions can be read on the color screen, where the results are displayed after each measurement step. At the end of the measurement, the final result is presented by a two-dimensional graphic image.
Graphical depiction of water resources and cavities
After the geoelectric measurement with the GeoSeeker Mini water detector, the data is processed. The display type can then be selected. The new software version includes a legend in the lower display area of the 2D diagram. With newly added illustrations, users can now read the diagram directly: colors in the diagram indicate water deposits (blue with water droplets) and/or cavities detected (red with a tunnel symbol).
OKM GeoSeeker Mini
GeoSeeker Mini display with specified measuring depth of 20 metres: Measurement data indicates the presence of water (blue) and cavity detected (red) up to 20 metres.
OKM GeoSeeker Mini
GeoSeeker Mini display with specified measuring depth of 100 metres: Measurement data indicates the presence of water (blue) and cavity detected (red) to a depth of 100 metres.
Depending on the size of the measurement and the choice of depth, the display has several columns and is provided with the corresponding depth information.
The button on the left (water drops) and the button in the middle (the bore) allow you to view simplified representations of the measurement results. You can switch between views.
OKM GeoSeeker Mini
Simplified GeoSeeker Mini view: The detector detected a low resistance value in the middle of the measurement field, which indicates high conductivity, that is, the presence of water.
OKM GeoSeeker Mini
Simplified GeoSeeker Mini display: The detector detected a high resistance value in the middle of the measurement field, indicating the presence of a cavity.
OKM GeoSeeker Mini
Simplified GeoSeeker Mini View: From the display of the presence of water detected, other measurement results - cavity schematic and 2D - can be displayed via buttons.
OKM GeoSeeker Mini
Screen width setting: Inactive buttons indicate that no water and/or cavity are detected. In this case, the 2D chart is available as an overview of the measurement data.
GeoSeeker Mini is language independent and can be used by inexperienced users thanks to the presentation of step-by-step instructions and results in the form of simple pictures and illustrations.
Geoelectrical applications with GeoSeeker Mini
The GeoSeeker Mini Photoelectric Finder can be used to discover groundwater resources as well as hidden cavities. The location of both structures can be determined due to their electrical resistance properties.
water detection
Groundwater resources have good electrical conductivity and the measurement results in low apparent resistance values. The ability to detect water is very useful
water detector
Well builders, well digger
Agriculture, fruit cultivation
Mining and construction companies
Groundwater deposits that can be detected are
groundwater level
Fresh water and drinking water
Underground stream, water veins
water flow, headwaters
cavity detection
Cavities and hidden cavities have a fairly low electrical conductivity and high resistance values. The ability to detect cavities is useful for
Archaeologist and historian
treasure hunters
Geotech
Military service
Building contractor
Underground cavities can be detected
Cavities and tunnels
Showrooms and shafts
Chambers, tombs and tombs
Hideouts, safes, baskets

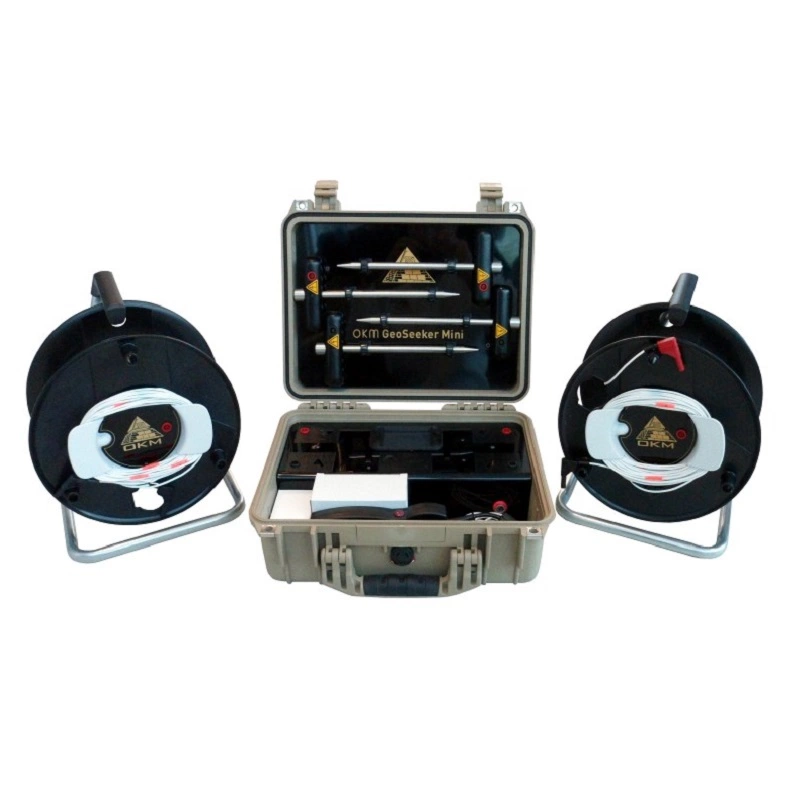

1x |
Control unit with touchscreen |
1x |
Waterproof and shock resistant Pelican case |
1x |
Power Pack with charger and travel adapter |
2x |
Power cable drum (Ø 290 mm) |
2x |
Voltage cable (10 m) |
4x |
Electrode |
2x |
Connecting Cable (2 m) |
1x |
User’s manual |
Control unit
- Dimensions (H x W x D): 410 x 340 x 180 mm
- Weight: 4.5 kg
- Input voltage (max.): 11 – 13 V DC / 30 W
- Display: 3.5” Resistive touch, 480 x 320 Pixel
- Display CPU: Cortex M3, 32 MHz, 128 KB RAM
- Data memory: 4 GB
- Sample rate: 4096 Hz (64-fold oversampling of 512 values)
- Operating time: approx. 6 – 8 h
- CPU: 80 MHz Cortex M3
- ADC: 16 bit
- Effective Range: (differential) –1400 to +1400 mV
- Measurement Period per Scan Point: min. 16 s
- Output: 320 V / 0.4 A
- Input Resistance (static): approx. 12 MΩ
Power Cable Drums (Ø 290 mm)
- Dimensions (H x W x D): 360 x 290 x 200 mm
- Weight: 3.6 kg
- Cable length: 100 m
- Markers: 10
Electrodes
- Dimensions (H x W x D): 270 x 120 x 35 mm
- Weight: 0.4 kg
Voltage Cable
- Cable length: 10 m
- Markers: 10
The technical data are average values. Minor deviations are possible during operation.
