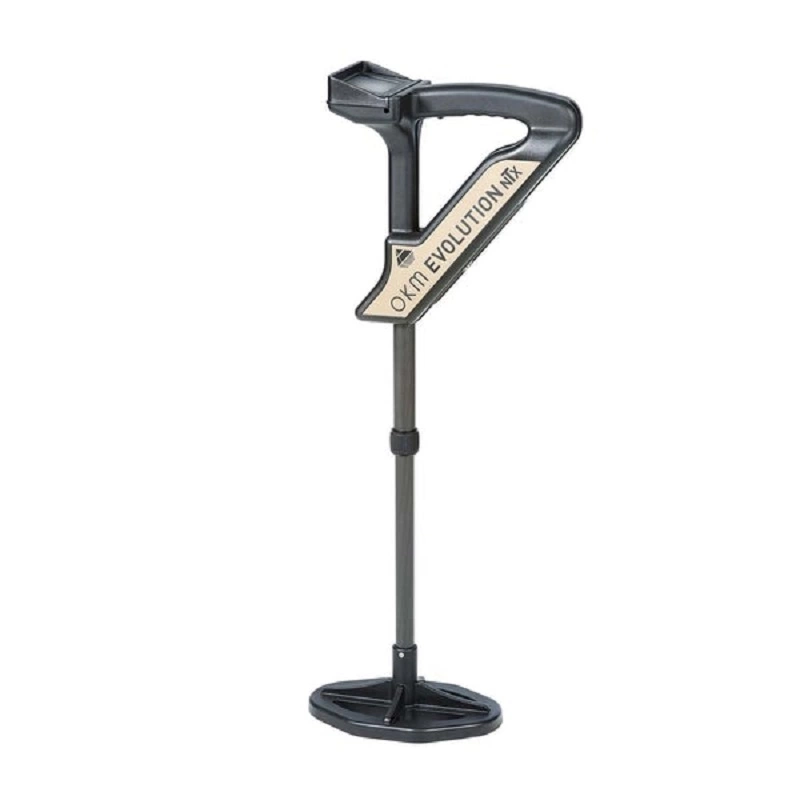

OKM Evolution NTX

3D metal detector for treasure hunters and gold hunters
The Evolution NTX 3D Metal Detector and Ground Finder can be used by treasure hunters, gold prospectors, metal detectors and archaeologists looking for buried objects, hidden artifacts or other lost items such as:
Lost valuables (rings, coins, jewelry, wedding bands)
Buried treasures and artifacts
Chests, chests, rooms and tombs
Unlike other metal detectors, OKM Evolution NTX can process 3D graphic images of underground treasures and detect anomalies. So you can determine the size and depth of potential discoveries before digging. The ability to penetrate deeply is another advantage of the 3D floor scanner. Numerous treasure finds prove the potential of our metal detector technology - made in Germany.
Find treasure in Algeria with OKM Evolution
A treasure has been found in Algeria using the OKM evolution detector
An Algerian treasure researcher has discovered this 200-year-old ancient sword.
Evolution's successor, the Evolution NTX, is more compact and offers improved features such as internal rechargeable batteries, greater ease of use, a more powerful sensor and coil technology.
Enhanced Features
The new Evolution NTX model has been improved and improved in several aspects based on our experiences as well as suggestions from several OKM users:
Long lasting rechargeable batteries
High-resolution color touch screen
Built-in bluetooth headphones
More compact and powerful design
Improved sensor and coil technology
With these features and improvements, the Evolution NTX metal detector is a very useful tool for all treasure hunters, archaeologists, gold prospectors and historians.
Color screen with touch screen and multilingual user interface makes it easy to use and configure the Evolution NTX metal detector. Screen brightness can be adjusted individually.
VLF . metal detector
The combination of our sensor technology and the VLF search coil enables the detection of near-surface minerals, deep-buried artifacts and treasure objects.
Soil Measurements and Mineral Detection: Operation Methods
The 3D Evolution NTX ground scanner offers two modes of operation to search for objects and structures hidden in the ground. The length of the detector can be adjusted individually according to your body size. So you can make this metal detector your own metal detector.
In the main menu, select one of the operating modes:
LiveSound
This operating mode allows the VLF metal detector to find shallow metal objects such as coins, rings and other jewelry. Beside the audio output, you can also see a simple graphical indicator of the signals.
3D scanning
This mode of operation is used to perform 3D graphical floor measurements. All data is stored in the device's memory. This information can be transferred to Visualizer 3D to create 3D images of underground objects and structures.

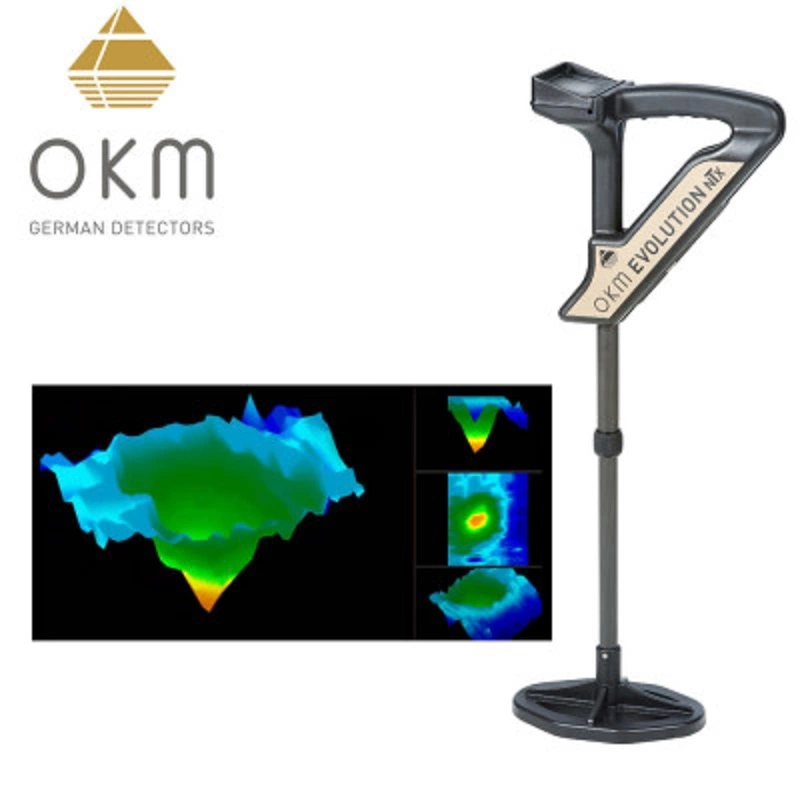

3D images with Visualizer 3D software
The Evolution NTX 3D Metal Detector and Ground Scanner can be used by treasure hunters, gold prospectors, metal detectors and archaeologists.
Using the 3D scanning function and Visualizer 3D software, you can create a 3D graph underground and find coins, rings, jewelry and other buried objects and artifacts. Metal objects in particular can be detected successfully. Buried objects are indicated by different colors in a 3D graphic representation.

1x	Control Unit
1x	Software Visualizer 3D Studio Standard Edition
1x	Waterproof and shock resistant Protector case
1x	Bluetooth headphones
1x	Charger for Control Unit
1x	Travel adapter
1x	Quick Start Guide

Control unit

• Dimensions (H x W x D): 540–810 x 150 x 280 mm
• Weight: approx. 1.5 kg
• Input voltage (max.): 19 V DC, 3.16 A, 60 W
• Processor / Main CPU: Cortex M3, 32 MHz
• Processor / Slave CPU: Cortex M0, 24 MHz
• Display: 3.5” Resistive touch, 480 x 320 Pixel
• Display CPU: Cortex M3, 32 MHz, 128 KB RAM
• Data memory: 4 GB
• Sample rate: 1024 values / second
• Measurement resolution: 16 bit
• Operating temperature: –10°C – 60°C
• Storage temperature: –20°C – 70°C
• Audio: Internal speaker / Bluetooth
• Waterproof: No
• Technology: GST / EMSR
• Sensor technology / Coil technology: SCMI-15-D / VLF
• Air humidity: 5% – 75%

Data transmission

• Technology: Bluetooth 5.1
• Frequency: 2.402 – 2.480 GHz
• Maximum Transfer Rate: 1 Mbps
• Maximum Transmitting Power: +8 dBm
• Maximum Range: approx. 10 m

Computer minimum requirements

• Interface (data transmission): USB 2.0
• Free disk space: minimum 250 MB
• Working memory (RAM): 2 GB
• Display: 1920 x 1080
• Processor: 1.2 GHz
• Graphics card: 1 GB RAM, OpenGL 3.3
• Operating system: Windows 10

The technical data are average values. Minor deviations are possible during operation.
