OKM GeoSeeker

Geoelectrical detector to detect water and gaps up to 250 meters (820 feet) deep.
Are you looking for hidden water sources or cavities up to 250 m (820 ft) deep? GeoSeeker is a professional geoelectric detector for detecting water and cavities. The device takes resistance measurements and visualizes the data in an impressive 3D image. This ground electrode detector is highly mobile, easy to use and developed and manufactured in Germany.
Detecting water in Africa
GeoSeeker from OKM has been successfully used to detect water in Africa to a depth of 250 metres. The Malian team is using the water detector for humanitarian purposes.
GeoSeeker uses a Schlumberger-based geoelectric measurement procedure to read the apparent resistance of the Earth. Based on soil impedance, the detector is able to locate groundwater deposits, water-bearing gravel and groundwater surface as well as cavities such as caves, tunnels, chambers, etc., therefore, the geophysical detector can be used as a water detector or cavity detector at the same time.
Customers who viewed GeoSeeker were also interested:
GeoSeeker measurement modes
GeoSeeker hardware components are entirely controlled by a modern Android tablet. All commands and measurement results are transmitted wirelessly via Wi-Fi. With the pre-installed software, you don't have to do anything more than choose one of three supported measurement modes:
Active Scan (Fine)
With this measurement mode, GeoSeeker uses two electrodes to inject electrical energy into the ground. Two additional electrodes measure the potential difference (voltage drop) at the measurement points in order to calculate the resistance value. This mode is used to detect underground water deposits, hidden caves or even impermeable layers and obstructions in the basement. In Active Scan, you specify a specific depth range at which you will perform the measurement. So you would set the starting depth and ending depth between 5 meters (16 feet) and 250 meters (820 feet).
Active Scan (fast)
This scan mode is a quick version of Active Scan. In this mode, the detector also injects electrical energy into the ground and measures the potential difference (voltage drop) to calculate the apparent resistance to the ground.
negative scanning
With this measurement mode, GeoSeeker uses only two electrodes to read the normal voltage in the ground (no electrical energy is injected into the ground). This mode is used to detect underground running water.
GeoSeeker
GeoSeeker provides step-by-step instructions to help you complete the measurement. You do not have to do anything other than follow these instructions until the measurement is complete. After the measurement is completed, the values ​​are visualized in a 3D image that is displayed on the tablet screen. The program provides some color adjustment capabilities to improve the 3D graphical representation of aquifers, aquifer pebbles, the aquifer surface (represented in bluish colors) as well as cavities, caves, tunnels, chambers or impermeable layers (indicated in reddish colors).
GeoSeeker Transportation

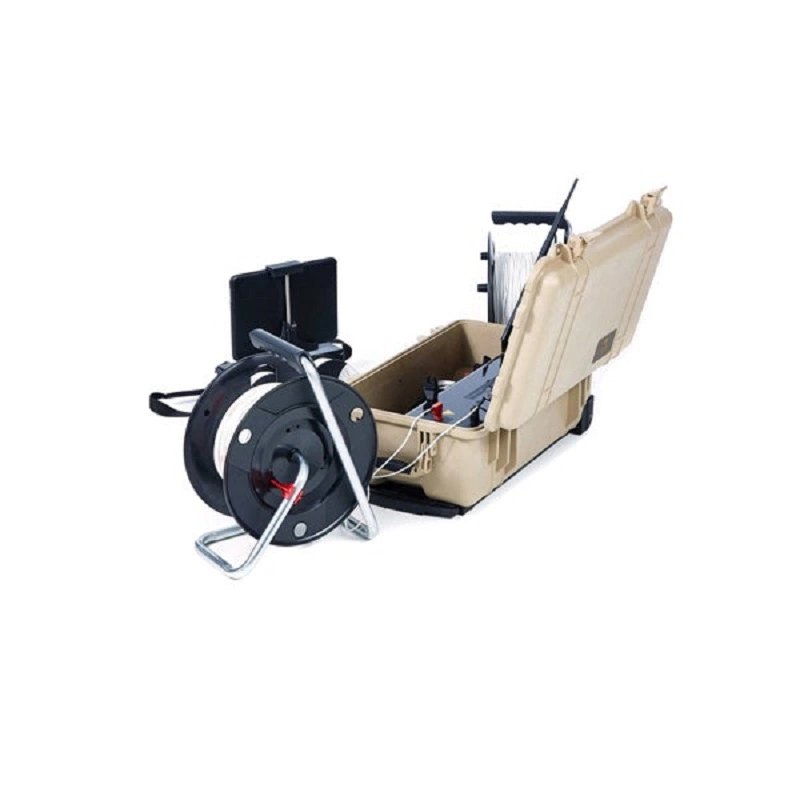

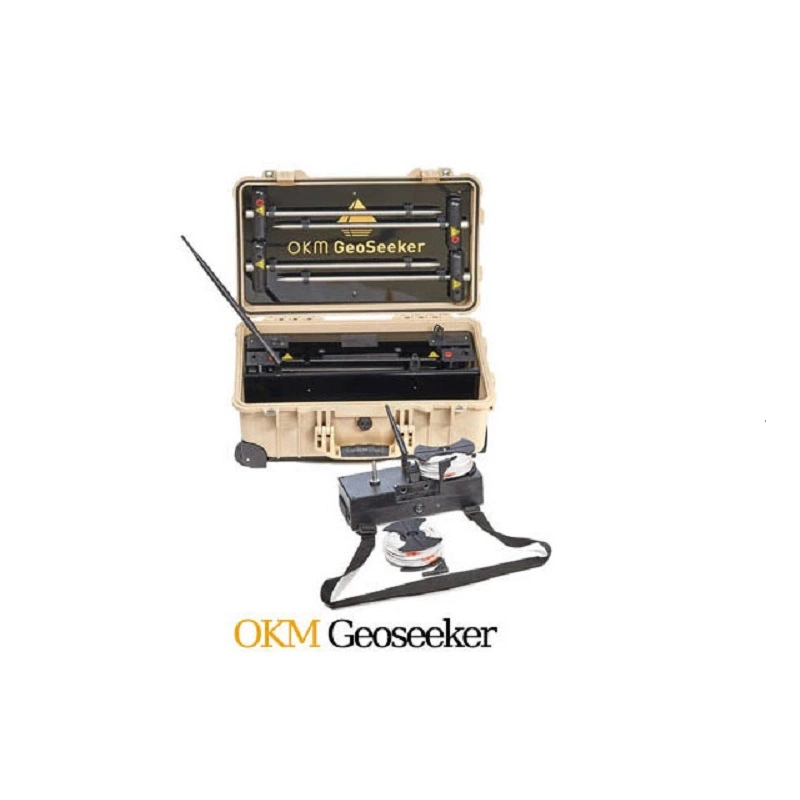

GeoSeeker devices are integrated into the waterproof and shockproof Peli carrying case. So your geoelectric equipment is well packed and always ready for transportation.

1x	Controller
1x	Android Tablet
1x	Waterproof and shock resistant Pelican case
8x	AA battery 1.5 V
1x	Power Pack with charger and travel adapter
1x	Power Box
1x	Charger for controller
1x	Charger for Power Box
2x	Power cable drum (Ø 290 mm)
2x	Voltage cable drum (Ø 120 mm)
4x	Electrode
2x	Connecting Cable (2 m)
1x	User’s manual

Voltage Cable Drums (Ø 120 mm)

• Dimensions (H x W x D): 360 x 290 x 200 mm
• Weight: 6.5 kg
• Cable length: 255 m
• Markers: 15

Power Cable Drums (Ø 290 mm)

• Dimensions (H x W x D): 120 x 120 x 45 mm
• Weight: 0.65 kg
• Cable length: 26 m
• Markers: 25

Controller (Receiving Unit)

• Dimensions (H x W x D): 130 x 270 x 110 mm
• Weight: 0.6 kg / 2.1 kg (with mounted cable reers and batteries)
• Sample rate: 4096 Hz (64 times oversampling of a 512 samples mean value)
• Operating time: min. 16 hours (charged batteries)
• Charging Time: 3 h / max. 5 h (empty batteries)
• CPU: 80 MHz Cortex M3
• ADC: 16 bit
• Communication with Tablet PC: WLAN-Accesspoint, 2.4 GHz band, channel 6, WPA2
• Communication with Power Box: 2.4 GHz band, on-demand, proprietary
• Effective Range: –1400 to +1400 mV
• Measurement Period per Scan Point: min. 16 seconds
• Power Supply (8 AA batteries): 8 – 14 V DC
• Input (for Charger): 12 V DC / 1.5 A
• Input Resistance (static): approx. 12 MΩ

Power Box (Sending Unit)

• Dimensions (H x W x D): 230 x 550 x 360 mm
• Weight: 15.8 kg / 18 kg (with mounted Electrodes)
• Operating time: 100 h (min. Power) / 40 h (average Power) / 8 h (max. Power)
• Charging Time: max. 8 hours
• Output: max. 390 V / 0.5 A / 20 W
• Communication with Controller: 2.4 GHz band, on-demand, proprietary
• Input (for Charger): 24 V DC / 2 A
• Internal Power Supply: Lead Acid Battery (2 x 12 V, 10 Ah)

Electrodes

• Dimensions (H x W x D): 440 x 120 x 35 mm
• Weight: 0.52 kg

The technical data are average values. Minor deviations are possible during operation.
